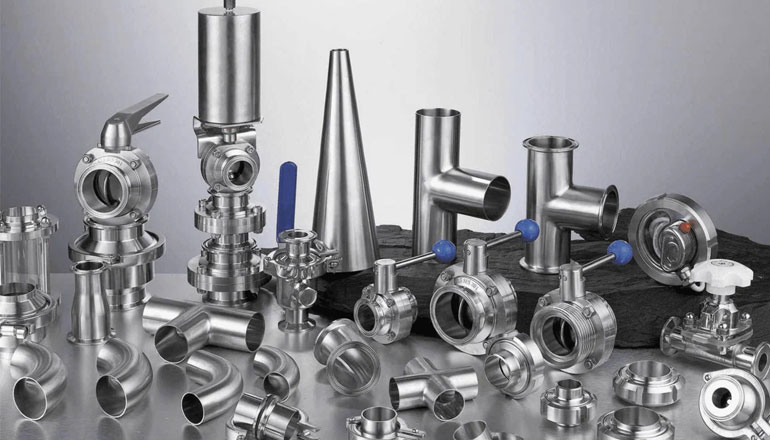

Dairy Fittings
These Dairy fittings are suitable for the Pharmaceutical, Food & Beverage, Dairy, and Brewing industry. These Fittings are available in stainless steel 304 & 316 grades which makes them easy to clean and Hygienic.
Types Of Dairy Fittings:

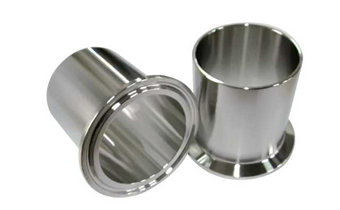

Tc Ferrule
A tri clamp ferrule prevents food and beverage contamination by making sure there are no leaks in the many joints that a sanitary piping system will have. Preventing food contamination is key in food and beverage production given that the products are made for human consumption.
| Usage/Application | PHARMACEUTICAL/DAIRY INDUSTRY |
| Size | 1/4" TO 12" |
| Material | SS |
| Shape | Round |
| Media Type | SS304/316/316L |
| Surface Finishing | Polished |

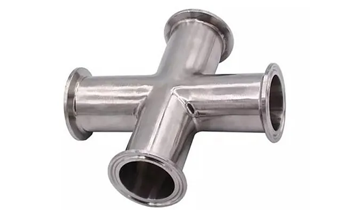

TC Cross Type
We are one of the leaders amongst manufacturers of Stainless Steel TC End Cross Tee Our supplied products are used in all over word for different applications. These types of reducer have inlet and outlet end & align to common center line. These are available in bulk as well as economic order quantity. We have a team of professionals and experienced engineers who are able to create these products in customized designs & sizes.
| Size | 1/2 inch |
| End Connection Type | Buttweld |
| Usage/Application | Plumbing Pipe |
| Surface Finish | Polished |
| Color | Silver |
| Material | Stainless Steel |
| Material Grade | SS304 |

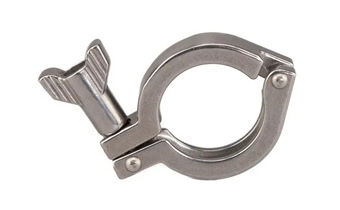

TC Clamp
Tri-Clamp clamps – also referred to as sanitary clamps – made of stainless-steel are being used on systems, pipes and vessels to close and secure Tri-Clamp connections tightly. Therefore, the clamp is positioned around two Tri-Clamp flanges that have a gasket between them.
| Sizes | 1/2”-4”, DN 10 – DN 100 |
| Outside Diameter | 1/4” O.D. – 8” O.D., 1/4” N.B. – 8” N.B. |
| Thickness | 1.0 mm to 5 mm, 12 SWG, 14SWG, 16 SWG, 18SWG, 20 SWG |
| Finish | Mechanical Polish, Electro Polished, Non Electro Polished, 320 Grit, 400 Grit, 500 Grit, 800 Grit |
| Standards | DIN / TRICLOVER / IDF / SMS / BSP / NPT |
| Grade | SS 201, SS 202, SS 304, SS 304L, SS 316, SS 316L, SS 310S, SS 321, SS 904L |

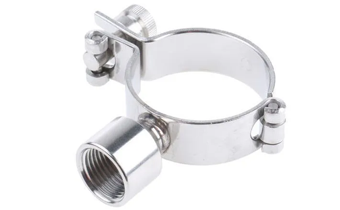

Pipe Holder Clamp
Pipe clamps are found in all manner of household, industrial and outdoor settings. They're used as an efficient and tidy way to restrain, secure and guide tubing or conduit for a range of plumbing, heating and electrical purposes.
| Size | 4 inch |
| Material | SS |
| Type of Clamp | C Clamp |
| Class | Heavy Duty |
| Usage/Application | Pipe Fitting |
| Shape | Round |

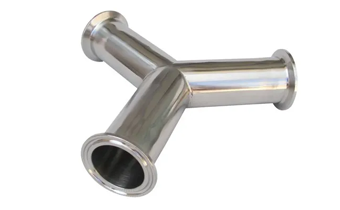

Dairy Y Type
Ss Y Type Pipe Tee is pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. Pipe Tee is used to connect pipelines with a pipe at a right angle with the line.
| Size | 1/2"inch to 12"inch |
| Type of Tee | Straight |
| End Connection Type | dairy fitting |
| Schedule | Sch 16gauge , 18gauge , 22gauge |
| Thickness | As per requirement |
| Technics | welded |
| Material Grade | Sa 304,136 |
| Standard | stainless steel |

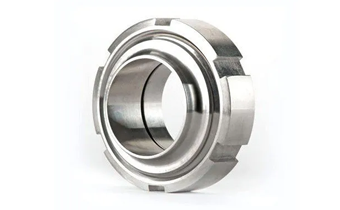

Dairy Union
Dairy unions are three-piece joints used for mobile connections of dairy pipes. One of the items that compose the union is the male part for dairy union. These unions are manufactured from quality materials like AISI304 and AISI316L using advanced machinery. Being a quality conscious company, we manufacture all our products in accordance with DIN, ISO, IDF and 3A standards.
| Size | 3/4 inch, 1 inch |
| Application | Gas Pipe, Drinking Water Pipe |
| Size Range | 1" to 6 " |
| Country of Origin | Made in India |
| Material for Construction | Stainless steel 304 |
| Finishing | Mirror Polish |

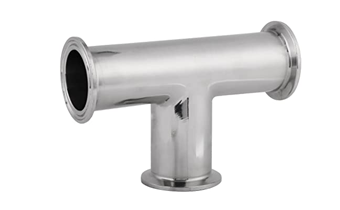

Dairy Tc Tee Type
Tc End Dairy Bend Fitting come in various shapes and sizes, including elbows, tees, crosses, caps, plugs and more. They can be used to make silo connections, milk line connections or other needs related to the movement of milk products.
| Size | As per requirement |
| Material | SS |
| Type of Tee | Tri Clover End |
| End Connection Type | Tri Clover |
| Usage/Application | Pipe Fitting Dairy and Pharma |
| Range | ½” (15 mm) od to 4” (100 mm) thick od 6swg, 14swg, 12swg |
| Grade | aisi 304, 316, 316l |
| Finish | dairy polished, electro polished, 320 grit. |

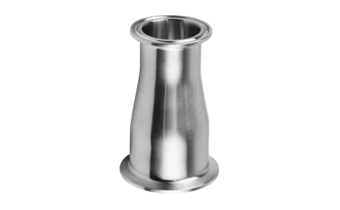

Dairy Tc Reducer
A stainless steel dairy reducer is a type of fitting used in the dairy industry for connecting and reducing the size of pipes or tubing in dairy processing systems. It is typically made from high-quality stainless steel to ensure hygienic and corrosion-resistant properties, which are crucial in dairy production environments.
| Size | 3/4 X 1/2 inch |
| Material | SS |
| Reducer Type | Concentric |
| End Connection Type | Buttweld |
| Surface Finish | Anodized, Mill Finished, Finished Polished |

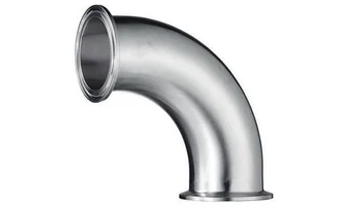

Dairy 90 Degree Tc Elbow Type
A 90 degree elbow is a pipe fitting which you can used to change the flow direction in a 90 degree.It is also called “90 bend” or “quarter bend”. As a joint between two pipes,the 90 degree elbows are also used as a railing ends or corners on a level installation.
| Material Grade | SS316L |
| Shape | Round |
| Standard | sch40 |
| Usage/Application | Structure Pipe |
| Finishing | Coated |
| Application | Gas Pipe |
| Steel Grade | SS304, SS316 |

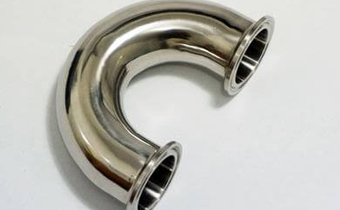

180 Degree Tc Elbow Type
180 degree long radius and short radius elbows are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders. The ends may be machined for butt welding.
| Material Grade | ASTM A403 WP316/316L,ASTM A403 WP304/304L,ASTM A182 |
| Material | ASTM A403 WP316/316L,ASTM A403 WP304/304L,ASTM A182 F316L,304L,DIN 1.4301,DIN1.4306,DIN 1.4401 |
| Bending Radius | 180 Degree |
| Diameter | 1/2" (15 NB) to 48" (1200NB) |
| Elbow Type | 180 Degree Elbow |
| Standard | ASTM A403 / ASME SA403,ANSI B16.9 |

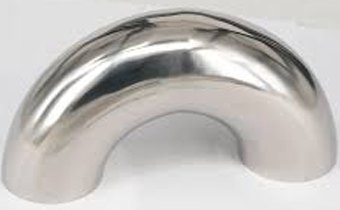

180 Degree Dairy Bend
180 degree return bend allows complete reversal of flow in a piping system. 180 degree long radius and short radius elbows are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.
| Material Grade | SS 304 |
| Size | 38 mm (OD) |
| Usage/Application | Pipe Fitting |
| Bend Angle | 180 degree |
| Material | Stainless Steel |
| Surface Finish | Polished |
| Shape | U |
